Focus CAT Basis

Design roads, terrain, water & sewage and landscape architecture.

Price from (NOK)

9 100,-

CAT Basis

|

Landskap

Veg

VA

Focus CAT Basis - advanced Civil 3D application

Focus CAT (Civil Advanced Tools) is a BIM application for Autodesk Civil 3D. The basic application Focus CAT Basis can be expanded on with subject-modules for Roads, VA and Landscape Architecture.

Focus CAT Basis contains template files adapted to Norwegian conditions and a number of tools for handling and calculating terrain models, as well as importing and exporting Norwegian file formats such as SOSI or KOF.

Focus CAT Basis enables seamless interaction between all subjects and through all phases of a project. Focus CAT is adapted to the industry's needs and working methods, and it is easy to use

  • Example
  • Example

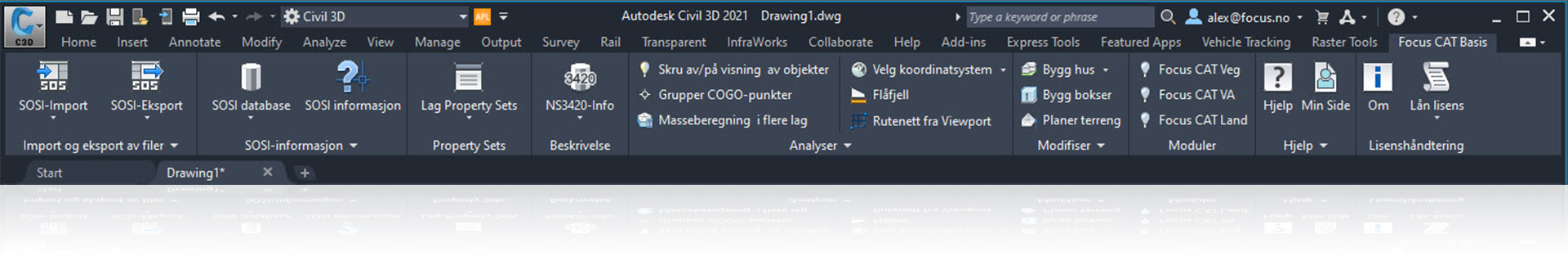

    Ribbon-menu for CAT Basis (NO).

Product

Links

Import and export

of Norwegian formats such as SOSI, KOF and many more.

Metadata

You can process metadata such as SOSI data on imported objects, or enrich new objects.

Improved workflow

A varied range of features makes working in Civil 3D much easier, faster and deeper.

About Focus CAT Basis

Norwegian templates

Focus CAT contains comprehensive templates adapted to Norwegian standards and working methods.

To get started with a project, you can easily import a SOSI file and generate a terrain model of an existing situation.

You also get imported map data for other objects such as roads, houses and more that are represented as lines, points and surfaces. In addition, Focus CAT Basis provides support for a number of other formats.

  • Example

    Wooden structure from template, marked on the left

Complete SOSI database

Focus CAT comes with a complete SOSI database for tagging objects.

The SOSI database will automatically provide Civil 3D objects with correct SOSI information. We also keep this database up to date according to the SOSI standard at all times.

  • Example

    SOSI database

Import existing basis

To get started with a project, you can easily import a SOSI file and have a terrain model of an existing situation generated.

You also get imported map data for other objects such as roads, houses and more that are represented as lines, points and surfaces. In addition, Focus CAT Basis provides support for a number of other formats.

  • Example

    CAT Import menu

Import and Export formats

In addition to opening Civil 3D to import several important Norwegian file formats, you can also export a number of formats:

SOSI, Shape, KOF, TIT, NYL, LandXML (for machine control), professional model export, TIN (3D Faces, Polylines or Polyface Mesh) and SOSI database for editing objects' SOSI info.

  • Example

    Import and Export from ribbonmeny

Smart right-click menus

We have created quick menus that appear when you right-click, so you can quickly convert between Feature Lines, 3D Polylines, Polylines and Alignments and modify these (insert points, delete points etc.).
  • Example

    Focus CAT tools, in Norwegian.

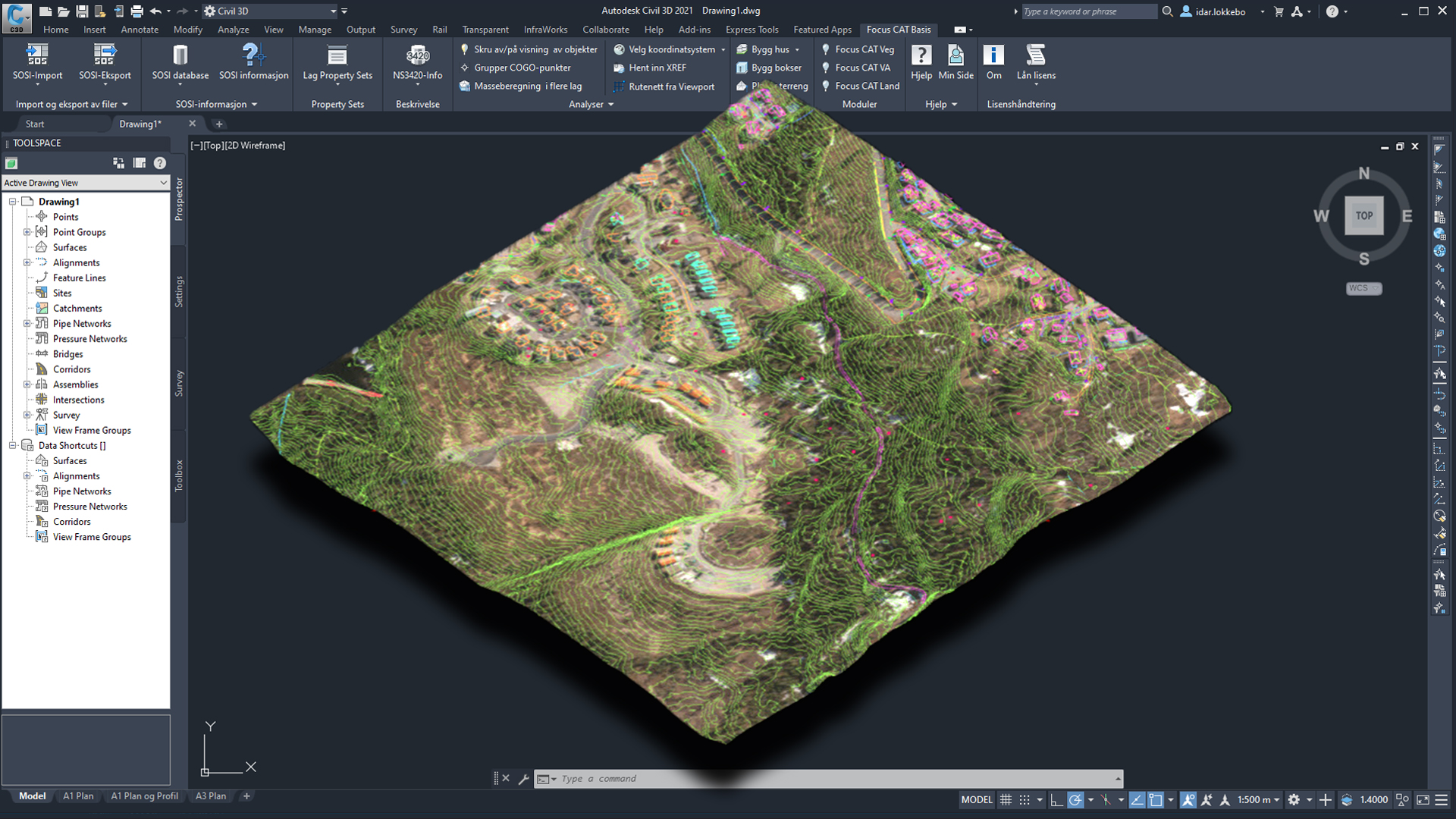

Terrain analysis and slope

Automated recording of terrain models from SOSI file. Automatic height and slope analysis of terrain. Terrain analysis with altitude or slope data. Terrain planning and automatic generation of overall lowest / highest terrain.

Property sets

With property sets you can tag objects with BIM information. This data will be visible when you take the objects on to interaction models, for example in Navisworks. The information that is added with property sets will also be visible on objects that are exported to IFC, and further readable in interaction models

Build House from SOSI file

If you have building-related and height for SOSI data of buildings, you can visualize these in your model in 3D with a keystroke. Furthermore, you can take these buildings into other programs. We also have a variant of this feature that exports outline of house to shape file for use in other applications, such as Infraworks.

Always up to date

Focus CAT is continuously updated and new updates are published every quarter or more often. The updates are available via web update and do not require any new installation.

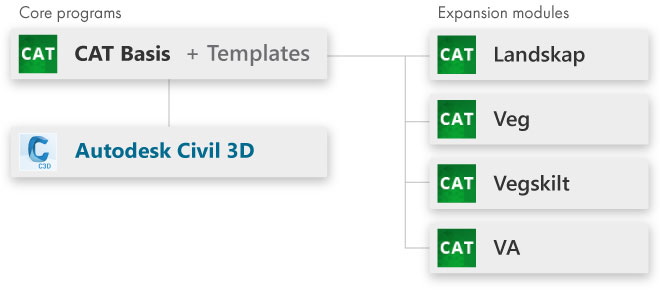

Focus CAT Modules

Focus CAT is an application for Autodesk AutoCAD® Civil 3D® that makes it possible to design roads, terrain and VA in accordance with Norwegian standards and requirements.

If you subscribe to Focus CAT Basis, you can expand with specialist modules for designing Water and Sewerage (VA), Road and Landscape.


Expand all

Focus CAT Landskap

An advanced CAT module, adds tools for working with terrain and landscape in Civil 3D.

Prices from

14 000,-

Annual subscription (NOK)

Learn more >>

Focus CAT Veg

An advanced CAT module, with tools for working with roads, ditches and tunnels according to Norwegian standards. For Autodesk AutoCAD and Civil 3D.

Prices from

17 900,-

Annual subscription (NOK)

Learn more >>

Focus CAT VA

Advanced Focus CAT module, adds tools for engineering and working with water and sewage in Autodesk Civil 3D

Prices from

17 900,-

Annual subscription (NOK)

Learn more >>

Pricing



Focus CAT - Basis

Multi-user license

9 100,-

Annual subscription (NOK)

  • Licence covers multiple machines.
  • One license per same time user.
  • Recommended when ment to be used by several machines.

All prices are stated ex. VAT. For questions regarding our prices or products, do not hesitate to contact us!
